Surface Mounted DownlightLoox5 LED 3109, 24 V - 833.77.530
Light

Surface Mounted DownlightLoox5 LED 3109, 24 V - 833.77.530

HAFELE

Download Product Files

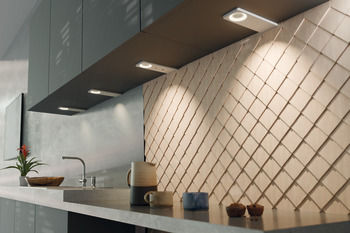

Surface Mounted DownlightLoox5 LED 3109, 24 V - 833.77.530 by Hafele — A perfect solution for illuminating wall cabinets and shelves.

Properties

Product Code: 833.77.530
Category: Light

Material Properties

Used Material:
Plastic
Durability:
L80/B10 >50,000 h, L70/B50 >80,000 h

Product Attribute Symbols

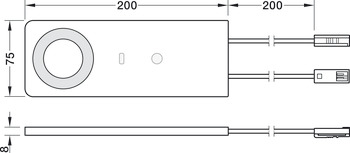

Dimensions

Length (cm): 20
Width (cm): 7.5
Height (cm): 0.8
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_TR
  • 833.77.530_Safety notes
  • ISO_27001_TR
  • ISO_27001_ENG
  • ISO_9001_ENG
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

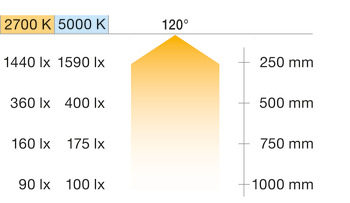

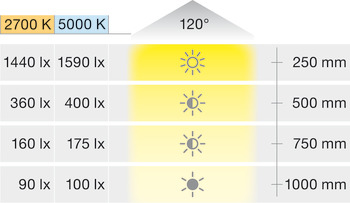

The Surface Mounted DownlightLoox5 LED 3109, 24 V - 833.77.530 by Hafele represents a refined fusion of quality and functionality. With a color temperature ranging from 2700 to 5000 K, it meets various lighting needs. Equipped with 42 LEDs, this downlight delivers a luminous flux of 270 to 310 lm while consuming only 5 W of power. Its plastic housing and diffuser ensure both lightweight and durability.

This product stands out with its high energy efficiency, providing 54 to 62 lm/W. Measuring 200 mm in length, it allows for easy installation. With an IP20 protection rating, it is safe for indoor use. Additionally, its lifespan exceeds 50,000 hours, making it a long-term investment.



The Surface Mounted DownlightLoox5 LED 3109, 24 V - 833.77.530 is an ideal lighting solution that combines modern design with energy efficiency. It offers a long-lasting and practical usage experience.
