3D Adjustable Hinges

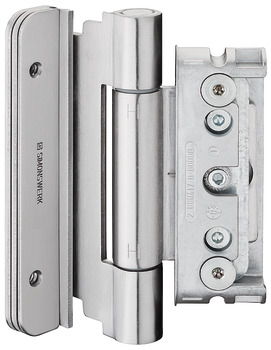

Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.840

HAFELE

Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.840 by Hafele — Provides high durability and adjustability for door installations.

Properties

Product Code: 922.13.840
Category: 3D Adjustable Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 14
Width (cm): 3.5
Height (cm): 14
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.13.840_Safety notes
ISO_27001_ENG
ISO_27001_TR
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

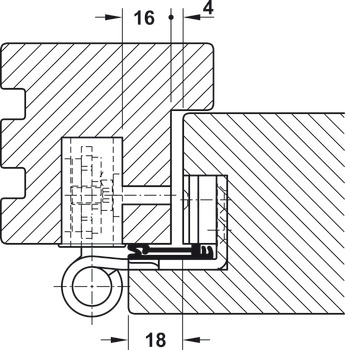

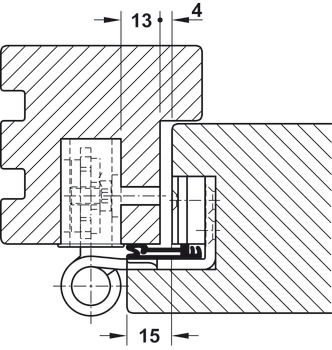

The Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.840 by Hafele represents a refined fusion of quality and functionality. Designed specifically for wooden door installations, this hinge ensures reliability and strength. Its high pullout resistance values are achieved through groove-mounted receivers in both the door and frame, making it suitable for system testing according to DIN V EN V 1627ff.

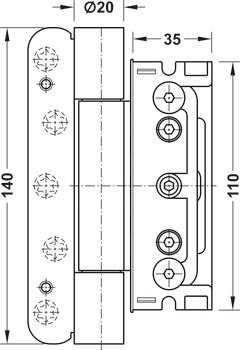

This hinge is ideal for wooden door leaves and is compatible with wooden frames, supporting door weights of up to 160 kg. With a knuckle length of 140 mm and a knuckle diameter of 20 mm, it facilitates easy installation. Additionally, the maintenance-free friction bearings provide long-lasting performance.

This product provides significant convenience in door installation due to its adjustability features. Side adjustment of ±3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±3 mm allow for easy modifications without unhooking or wedging under the door. The Recessed hinge, Simonswerk BAKA protect 4010 3D FD stands out with its high performance and durability.
