Furniture Hinges

Cruciform mounting plate Metalla 510 A - 329.81.525

HAFELE

Cruciform mounting plate Metalla 510 A - 329.81.525 by Hafele — A product that facilitates mounting operations and offers a sturdy structure.

Properties

Product Code: 329.81.525
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 1.1
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_TR
329.81.525_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

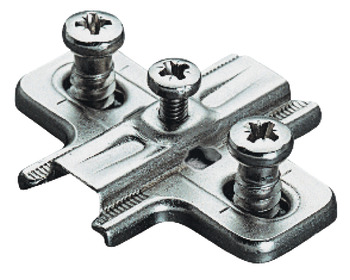

The Cruciform mounting plate Metalla 510 A - 329.81.525 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made of steel and features a nickel plating that provides durability and an aesthetic appearance. With a drill hole diameter of 5 mm, it is ideal for mounting operations. Additionally, it is designed to be compatible with side panels of 19 mm thickness.

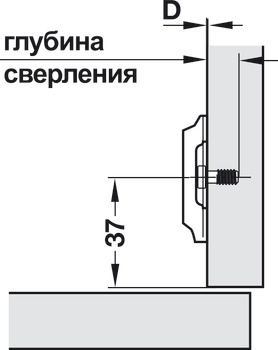

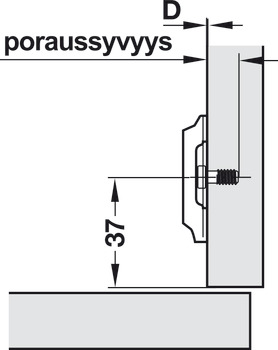

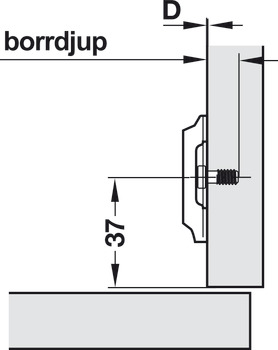

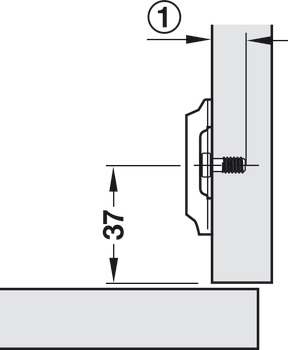

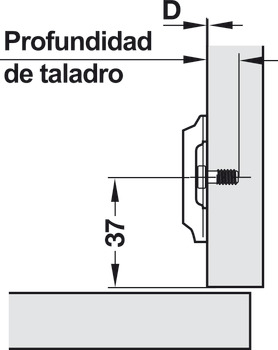

The mounting plate offers a screw length of 11 mm and a screw distance of 32 mm, ensuring secure installation. The edge distance of 37 mm allows for flexibility during installation. Height adjustment can be easily made via a ±2 mm slot. This product comes with a quick fixing system SM, allowing for screw fixing with pre-mounted Euro screws.

The Cruciform mounting plate Metalla 510 A - 329.81.525 is a reliable assistant in your mounting operations. It should be preferred for its superior quality and functionality.
