Cruciform mounting plate - 311.71.600
Furniture Hinges

Cruciform mounting plate - 311.71.600

HAFELE

Download Product Files

Cruciform mounting plate - 311.71.600 by Hafele — An excellent mounting solution for Metalla 300 hinges.

Properties

Product Code: 311.71.600
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_TR
  • ISO_27001_ENG
  • 311.71.600_Safety notes
  • ISO_9001_ENG
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

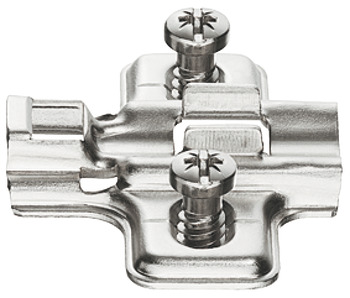

The Cruciform mounting plate - 311.71.600 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed in a cruciform shape specifically for Häfele Metalla 300 concealed hinges. Made from durable steel, it features a nickel plating that adds an aesthetic touch.

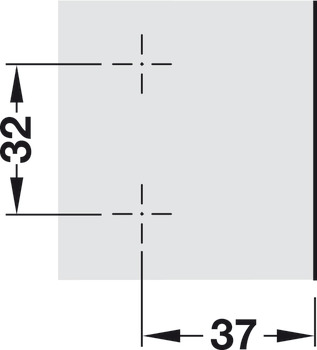

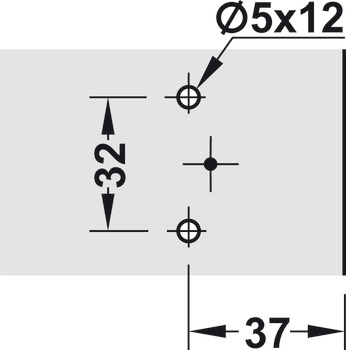

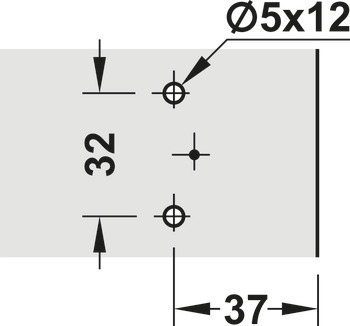

The mounting plate has a drill hole diameter of 5 mm and a screw distance of 32 mm, allowing for easy installation. Height adjustment can be made via a slot of ±2 mm, and it is equipped with a quick fixing system SM, making the installation process extremely practical. The product is designed for screw fixing with pre-mounted Euro screws, saving time for the user.



The Cruciform mounting plate provides significant convenience during installation processes. This product from Hafele is manufactured with high-quality materials and craftsmanship, ensuring long-lasting use. It is an ideal choice for professional furniture manufacturers and installers.
