Furniture Hinges

Concealed hingeMetalla 510 A/SM 110°, full overlay mounting - 329.17.507

HAFELE

Concealed hingeMetalla 510 A/SM 110°, full overlay mounting - 329.17.507 by Hafele — This hinge provides seamless aesthetics while enhancing functionality. Made from durable steel for long-lasting use.

Properties

Product Code: 329.17.507
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

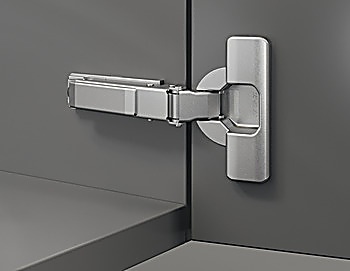

The Concealed hingeMetalla 510 A/SM 110°, full overlay mounting - 329.17.507 by Hafele represents a refined fusion of quality and functionality. Designed for standard applications, this hinge features a full overlay mounting that provides an elegant appearance to your doors. Crafted from steel with a nickel-plated finish, it ensures both durability and a stylish look.

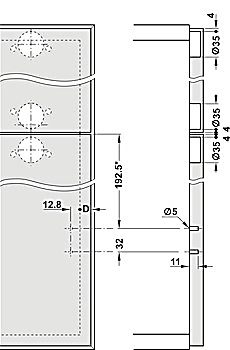

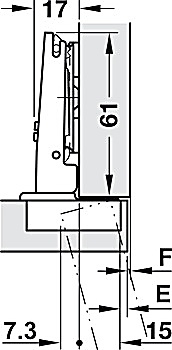

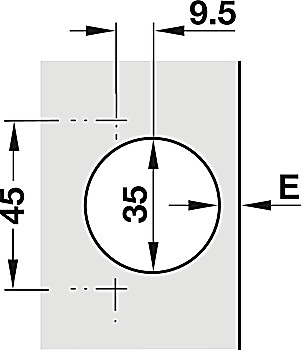

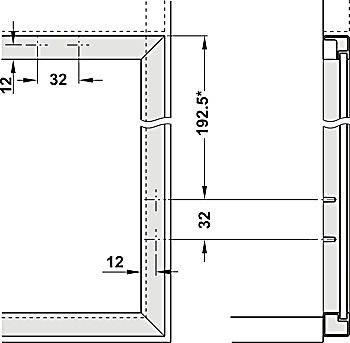

With an opening angle of 110°, it allows for easy door operation. The cup drilling depth is 11 mm, facilitating straightforward installation. The hinge offers various adjustment options, including side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates by +2.8 mm, or with Metalla 510 SM mounting plates from -0.5/+2.8 mm.

The Concealed hingeMetalla 510 A/SM 110° stands out by offering a perfect blend of aesthetics and functionality, making it an essential choice for your door installations.
