Furniture Hinges

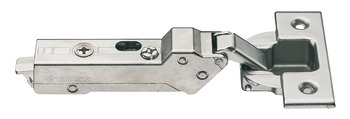

Concealed hinge, Tiomos 120°, full overlay - 348.36.730

HAFELE

Concealed hinge, Tiomos 120°, full overlay - 348.36.730 by Hafele — Ensures your doors close smoothly while providing an aesthetic look.

Properties

Product Code: 348.36.730
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

348.36.730_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Concealed hinge, Tiomos 120°, full overlay - 348.36.730 by Hafele represents a refined fusion of quality and functionality. This hinge features an automatic closing mechanism that ensures doors close properly every time. Made from durable steel and finished with a nickel plating, it offers both strength and aesthetic appeal.

With a 120° opening angle, this hinge provides a wide access range. Opening and closing doors is effortless, thanks to its superior design. Installation is straightforward, and the hinge can be easily adjusted to the desired angle using the mounting plate.

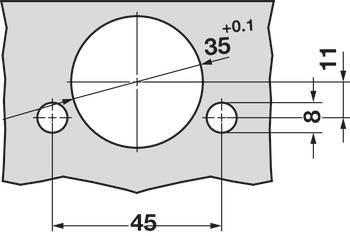

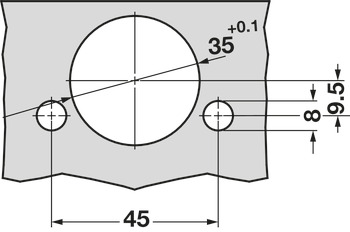

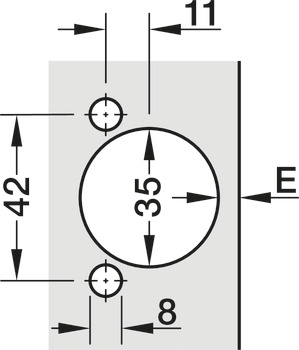

This hinge allows for tool-free installation and features a drilling pattern of 42/11. It provides side adjustment of ±2 mm, height adjustment of ±2.5 mm, and depth adjustment of -2/+3 mm, making it highly user-friendly. Additionally, height adjustment can be made depending on the mounting plate. Doors can be installed on cabinets without tools using the clip system.

The Concealed hinge, Tiomos 120°, full overlay, combines aesthetics and functionality to meet user needs. Its high durability and ease of use make it stand out. This product not only creates a visual appeal in your furniture but also provides practical use.
