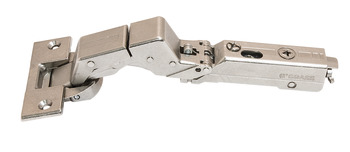

Concealed hinge, Grass, Tiomos M9 110° - 348.24.101

HAFELE

Download Product ID Card

Download Product Files

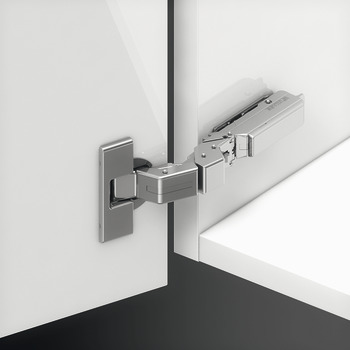

Concealed hinge, Grass, Tiomos M9 110° - 348.24.101 by Hafele — a perfect hinge solution for thin doors.

Properties

Product Code: 348.24.101
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_ENG
348.24.101_Safety notes
ISO_9001_TR
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

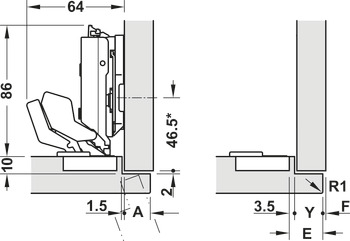

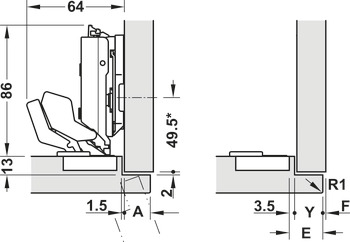

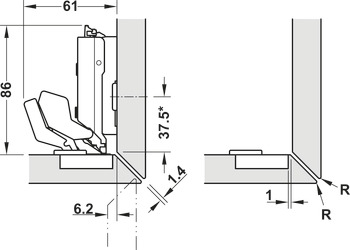

The Concealed hinge, Grass, Tiomos M9 110° - 348.24.101 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for thin doors with a thickness of 12-28 mm and can be used with rebated doors and surrounding mitres. It is suitable for wooden doors and requires cup drilling for assembly.

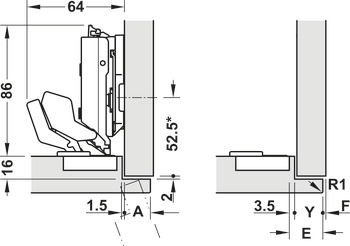

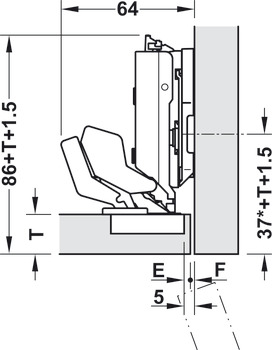

Made from high-quality zinc alloy, this hinge features a nickel-plated finish for an elegant look. The 110° opening angle allows for smooth operation of doors. With a cup drilling depth of 9 mm, it ensures secure mounting. The hinge is designed for screw fixing and has a drilling pattern of 45/9.5. Additionally, it offers adjustment facilities including side adjustment ±2 mm, height adjustment ±2.5 mm, and depth adjustment -2/+3 mm.

The Concealed hinge, Grass, Tiomos M9 110° - 348.24.101 stands out with its user-friendly design and durable construction. This product offers an excellent solution for thin doors, combining aesthetics and functionality seamlessly.
