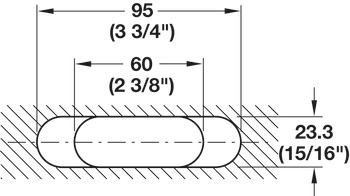

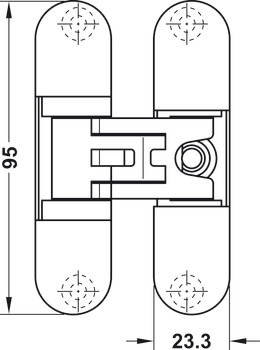

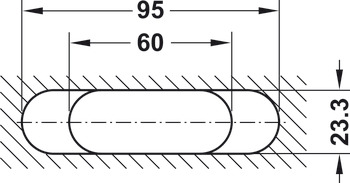

The Concealed door hinge, Startec H2 - 927.91.540 by Hafele represents a refined fusion of quality and functionality. With its rounded flange shape and 23.3 mm flange width, it offers an aesthetic appeal. Made from zinc alloy, it enhances durability while providing a 180° opening angle for ease of use.

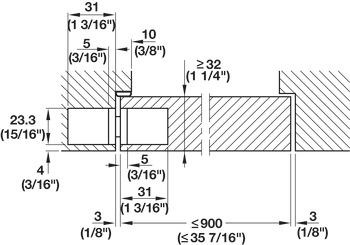

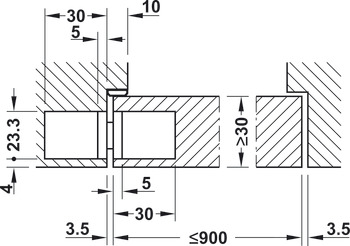

This hinge is compatible with doors up to 900 mm wide and 2000 mm high, making it ideal for wooden doors with a thickness of 32 mm. It supports a maximum weight of 45 kg with 2 hinges and 60 kg with 3 hinges. User-friendly features include side adjustment, height adjustment, and closing pressure adjustment.
The Concealed door hinge, Startec H2 stands out by combining aesthetics and functionality, making it an excellent choice for your door designs.
