Surface Mounted Downlight, Nimbus Modul Q 49 ON-XD, 230 V - 833.69.069
Light

Surface Mounted Downlight, Nimbus Modul Q 49 ON-XD, 230 V - 833.69.069

HAFELE

Download Product Files

Surface Mounted Downlight, Nimbus Modul Q 49 ON-XD, 230 V - 833.69.069 by Hafele — A modern lighting solution for your spaces.

Properties

Product Code: 833.69.069
Category: Light

Material Properties

Used Material:
Acrylic glas
Durability:
L80/B10 >50,000 h

Product Attribute Symbols
Dimensions

Length (cm): 20
Width (cm): 20
Height (cm): 5
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
  • ISO_27001_TR
  • ISO_9001_ENG
  • ISO_27001_ENG
  • 833.69.069_Safety notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

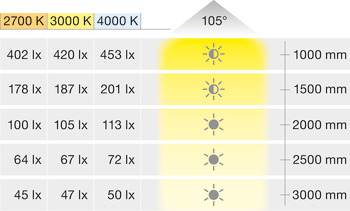

The Surface Mounted Downlight, Nimbus Modul Q 49 ON-XD, 230 V - 833.69.069 by Hafele represents a refined fusion of quality and functionality. Its modern design and acrylic glass material attract attention. Equipped with 49 LEDs, this light has a refraction angle of 105°, allowing it to illuminate a wide area. The DALI dimmable feature enables you to adjust the light level according to your needs.

This product boasts a lifetime of over 50,000 hours, with a color rendering index of over 90%, ensuring natural and vibrant colors. With an IP20 protection rating, it can be safely used in indoor environments. It provides 1,100 lm of luminous flux with a wattage of 11.80 W, resulting in an impressive luminous efficacy of 93 lm/W. Installation is straightforward, featuring a magnetic mounting plate for screw fixing.



This product by Hafele is an excellent choice for those seeking high-quality lighting solutions. Its modern design and functionality will add value to your spaces.
