Surface Mounted Downlight, Nimbus Modul Q 36 ON-XD, 230 V - 833.69.015
Light

Surface Mounted Downlight, Nimbus Modul Q 36 ON-XD, 230 V - 833.69.015

HAFELE

Download Product Files

Surface Mounted Downlight, Nimbus Modul Q 36 ON-XD, 230 V - 833.69.015 by Hafele — A modern lighting solution for your spaces.

Properties

Product Code: 833.69.015
Category: Light

Material Properties

Used Material:
Acrylic glas
Durability:
L80/B10 >50,000 h

Product Attribute Symbols

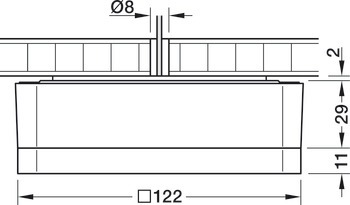

Dimensions

Length (cm): 20
Width (cm): 20
Height (cm): 8
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_TR
  • ISO_27001_TR
  • 833.69.015_Safety notes
  • ISO_9001_ENG
  • ISO_27001_ENG
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Surface Mounted Downlight, Nimbus Modul Q 36 ON-XD, 230 V - 833.69.015 by Hafele represents a refined fusion of quality and functionality. Its sleek design and acrylic glass material make it a standout choice. Equipped with 36 LEDs, it provides a luminous output of 840 lm, ensuring your spaces are well-lit. The dimmable feature allows for easy adjustment of light levels.

This product boasts a lifespan of over 50,000 hours and offers a color rendering index above 90%, accurately reflecting true colors. With an IP20 protection rating, it is safe for indoor use. Consuming only 8.60 W, it ensures energy efficiency. The installation is straightforward, utilizing a magnetic mounting plate for secure attachment.



The Hafele Nimbus Modul Q 36 ON-XD is an excellent choice for those seeking both aesthetics and functionality. Its modern design and high performance will add value to your spaces.
