Surface Mounted Downlight, Nimbus Cubic 49 ON-XD, 230 V - 833.69.166
Light

Surface Mounted Downlight, Nimbus Cubic 49 ON-XD, 230 V - 833.69.166

HAFELE

Download Product Files

Surface Mounted Downlight, Nimbus Cubic 49 ON-XD, 230 V - 833.69.166 by Hafele — A modern lighting solution for your spaces.

Properties

Product Code: 833.69.166
Category: Light

Material Properties

Used Material:
Acrylic glas
Durability:
L80/B10 >50,000 h

Product Attribute Symbols
Dimensions

Length (cm): 20
Width (cm): 20
Height (cm): 5
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 833.69.166_Safety notes
  • ISO_27001_TR
  • ISO_9001_TR
  • ISO_9001_ENG
  • ISO_27001_ENG
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

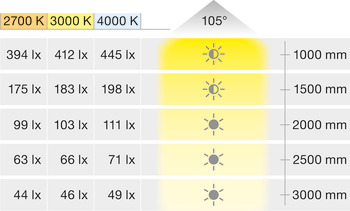

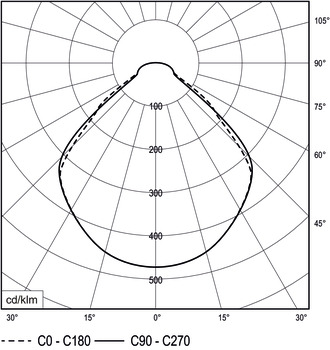

The Surface Mounted Downlight, Nimbus Cubic 49 ON-XD, 230 V - 833.69.166 by Hafele represents a refined fusion of quality and functionality. With a modern design, this lighting solution is crafted from acrylic glass and equipped with 49 LEDs. It features a 105° refraction angle, allowing it to illuminate a wide area effectively. The DALI dimmable capability enhances energy efficiency while providing 1,080 lm of luminous flux with a wattage of 11.80 W.

This product boasts a lifespan of L80/B10 >50,000 hours and a color rendering index of Ra >90, ensuring high-quality lighting. With an IP20 protection rating, it is safe for indoor use. Installation is straightforward, utilizing a magnetic mounting plate for screw fixing. The 200 mm cable length offers flexibility in setup.



This product stands out with its modern design and high performance, making it an ideal choice for your lighting needs.
