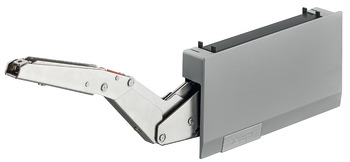

The Stay Flap Fitting, for Blum Aventos HK-Top Tip-On stay flap fitting - 372.85.646 by Hafele represents a refined fusion of quality and functionality. This fitting system is designed for one-piece flaps made from wood or with aluminum frames. Its tool-free front panel installation is made possible through a clip system, allowing for easy setup. The opening and closing forces are continuously adjustable at the lift mechanism, and the multi-position stop feature ensures that the flap locks securely in any position.

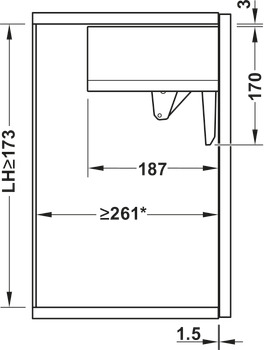

Constructed with zinc plating, the fitting enhances durability. It allows for an opening angle of up to 107 degrees and is suitable for cabinet widths of up to 1800 mm and heights ranging from 205 to 600 mm. With two lift mechanisms, the maximum flap weight is 18 kg. The installation depth is 187 mm, and it offers a 3-dimensional adjustment facility. The opening and closing forces can be adjusted continuously. For wide cabinets, it is recommended to attach a fitting to the center panel to prevent sagging of the front panel when in the open position.
Hafele's Stay Flap Fitting stands out with its user-friendly design and durability. This product is ideal for those seeking a practical and reliable solution.
