Drill In Hinges

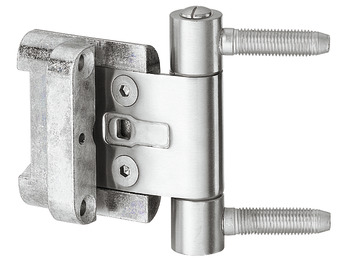

Drill-In Hinge With Recessed Wing Part, Simonswerk - 922.12.103

HAFELE

Drill-In Hinge With Recessed Wing Part, Simonswerk - 922.12.103 by Hafele — Provides reliable performance and aesthetic appeal for door installations.

Properties

Product Code: 922.12.103
Category: Drill In Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 5.2
Height (cm): 6.6
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
ISO_27001_TR
922.12.103_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

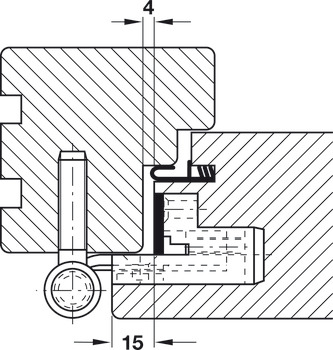

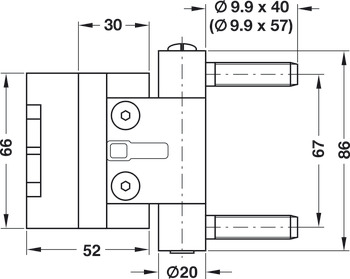

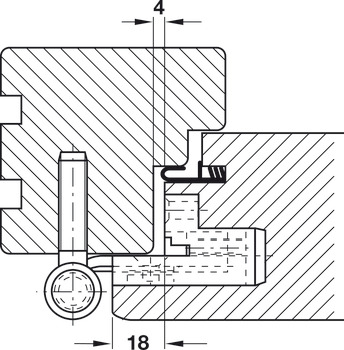

The Drill-In Hinge With Recessed Wing Part, Simonswerk - 922.12.103 by Hafele represents a refined fusion of quality and functionality. Designed for both DIN left and DIN right-hand use, this hinge offers flexibility with an overlay distance of at least 15 mm. Its square flange shape and 52 mm flange width provide an aesthetically pleasing appearance, while the 20 mm knuckle diameter and 66 mm flange height ensure a robust construction.

This product features an 86 mm knuckle length and a 20 mm router bit diameter, allowing for easy installation. The 30 mm thrust ring enhances the durability of the hinge, and the friction bearing design ensures maintenance-free operation. Additionally, it comes with an optional security pin for outward-opening doors.

The Drill-In Hinge With Recessed Wing Part, Simonswerk - 922.12.103 stands out due to its reliable performance and aesthetic appeal, making it a preferred choice for various door installations.
