Drawer side runner system Matrix Box S35 - 552.54.693
Drawer Systems

Drawer side runner system Matrix Box S35 - 552.54.693

HAFELE

Download Product Files

Drawer side runner system Matrix Box S35 - 552.54.693 by Hafele — A system that enhances the functionality of your drawers.

Properties

Product Code: 552.54.693
Category: Drawer Systems

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 40
Width (cm): No Information
Height (cm): 12
Volume (cm³): 480

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 552.54.693_Safety notes
  • ISO_9001_ENG
  • ISO_27001_TR
  • ISO_27001_ENG
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
  • 552.54.693_LGA - quality - certificate
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

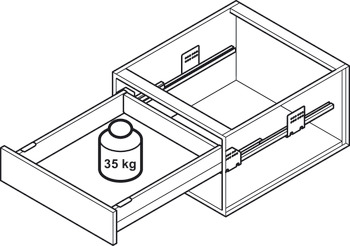

The Drawer side runner system Matrix Box S35 - 552.54.693 by Hafele represents a refined fusion of quality and functionality. This system features full extension capability with an integrated soft closing mechanism, ensuring a user-friendly experience. Made from steel, it boasts a load-bearing capacity of 35 kg, providing reliable performance.

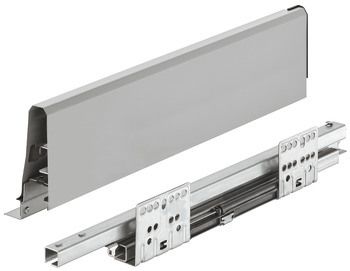

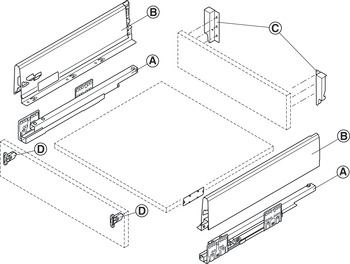

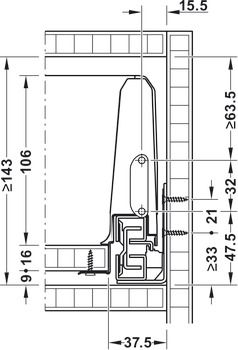

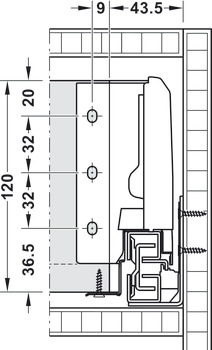

The drawer side height is 120 mm, and it offers height and side adjustment from the inside after installation. The height adjustment is ± 2 mm and the side adjustment is ± 1 mm, allowing for precise fitting. Supplied with one left and one right double-walled drawer side with rear panel fitting, one left and one right cabinet runner, one left and one right front fixing bracket, one left and one right rear panel fitting, and one left and one right cover cap, this system is comprehensive.



The Matrix Box S35 system stands out for its combination of aesthetic appeal and functionality, making it a top choice for any application.
