Furniture Hinges

Cruciform mounting plate, With pre-mounted Euro screws - 329.71.513

HAFELE

Cruciform mounting plate, With pre-mounted Euro screws - 329.71.513 by Hafele — This product provides easy installation and high durability, making it an ideal solution for furniture hinges.

Properties

Product Code: 329.71.513
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
Güvenlik Notları--Security Notes
329.71.513_Safety notes
ISO_27001_ENG
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

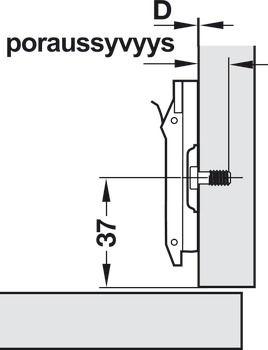

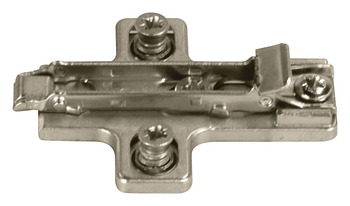

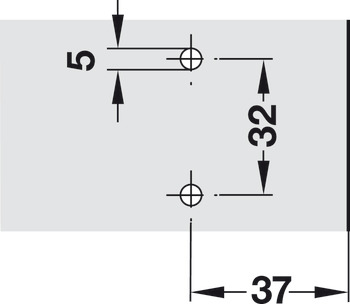

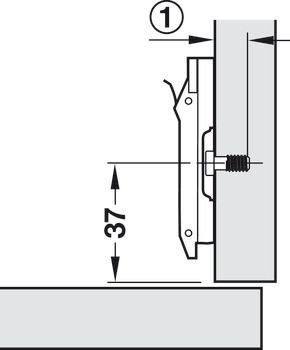

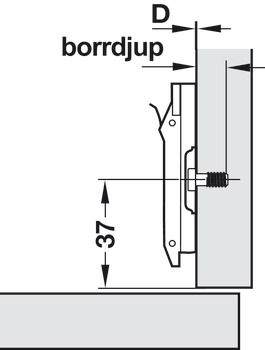

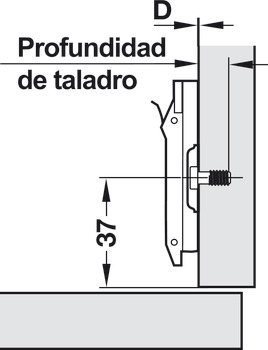

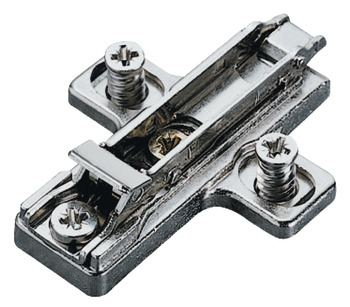

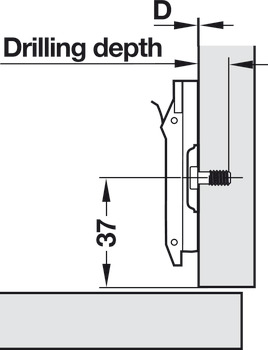

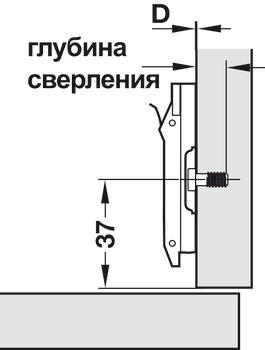

The Cruciform mounting plate, With pre-mounted Euro screws - 329.71.513 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from zinc alloy and features a nickel plating for enhanced durability. With a drill hole diameter of 5 mm, it is designed for use with side panels that are 19 mm thick. Additionally, it offers a screw distance of 32 mm and an edge distance of 37 mm for perfect compatibility.

Height adjustment of ±2 mm and depth adjustment of -0.5/+2.8 mm provide flexibility, while the quick fixing system SM allows for easy installation. Supplied with pre-mounted Euro screws, this product accelerates the assembly process and adds convenience.

The Cruciform mounting plate stands out with its ease of installation and high-quality material usage. It is an excellent choice for furniture hinges, ensuring reliable performance and durability.
