Cruciform Mounting Plate Metalla 510 SM - 329.69.048
Furniture Hinges

Cruciform Mounting Plate Metalla 510 SM - 329.69.048

HAFELE

Download Product Files

Cruciform Mounting Plate Metalla 510 SM - 329.69.048 by Hafele — A reliable and practical solution for mounting processes.

Properties

Product Code: 329.69.048
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • Güvenlik Notları--Security Notes
  • ISO_9001_ENG
  • 329.69.048_Safety notes
  • ISO_9001_TR
  • ISO_27001_ENG
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

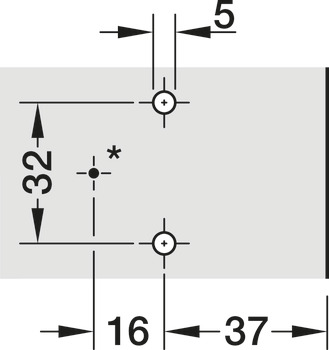

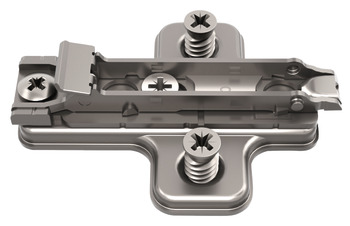

The Cruciform Mounting Plate Metalla 510 SM - 329.69.048 by Hafele represents a refined fusion of quality and functionality. Made from steel, this mounting plate features a nickel plating that enhances its durability. With a drill hole diameter of 5 mm and a side panel thickness of 19 mm, it caters to various mounting requirements. Its quick fixing system saves time for users during installation.

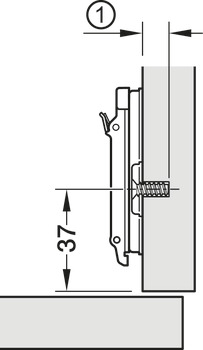

Designed with an eccentric mechanism for height and depth adjustment, it simplifies the mounting process. The screw distance of 32 mm and edge distance of 37 mm allow compatibility with different mounting scenarios. It comes with pre-mounted Euro screws, making the installation process even more convenient.



The Cruciform Mounting Plate stands out for its ability to expedite mounting processes, making it a preferred choice for users. Its quality material and practical design ensure long-lasting use.
