Cruciform mounting plate Metalla 110 SM - 311.71.501
Furniture Hinges

Cruciform mounting plate Metalla 110 SM - 311.71.501

HAFELE

Download Product Files

Cruciform mounting plate Metalla 110 SM - 311.71.501 by Hafele — An efficient solution for mounting wooden doors.

Properties

Product Code: 311.71.501
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 311.71.501_Safety notes
  • Güvenlik Notları--Security Notes
  • ISO_9001_TR
  • ISO_9001_ENG
  • ISO_27001_ENG
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

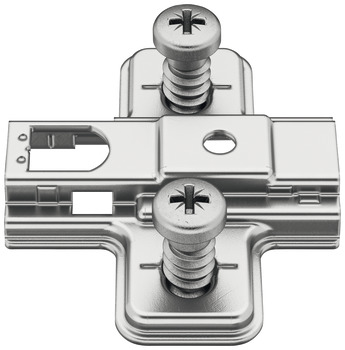

The Cruciform mounting plate Metalla 110 SM - 311.71.501 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed specifically for wooden doors, offering exceptional ease of installation. Made from durable steel and finished with a nickel plating, it not only provides protection against external factors but also presents an aesthetically pleasing appearance.

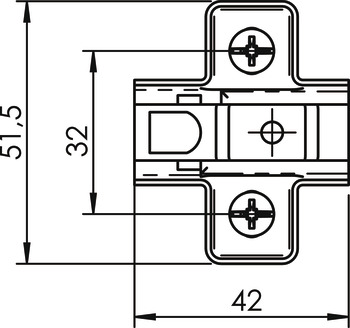

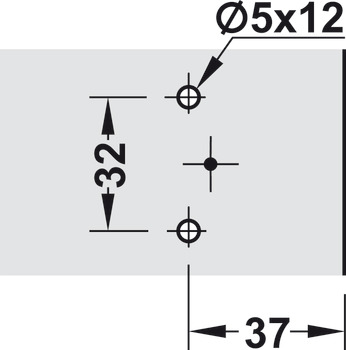

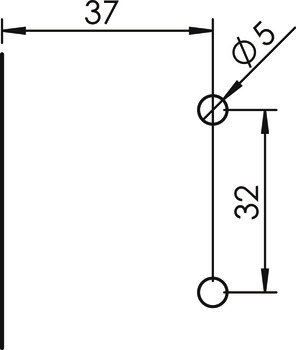

Part of Hafele's Metalla 110 SM series, this mounting plate features a screw distance of 32 mm and an edge distance of 37 mm, ensuring a secure fit. With an adjustment facility that allows for height adjustment of ±2 mm via a slot, it enables precise modifications during installation. Its quick fixing system SM, combined with pre-mounted Euro screws, simplifies the mounting process significantly.



This mounting plate stands out for its advantages in the installation of wooden doors. It is favored for its user-friendly design and the quality that Hafele products are known for.
