Furniture Hinges

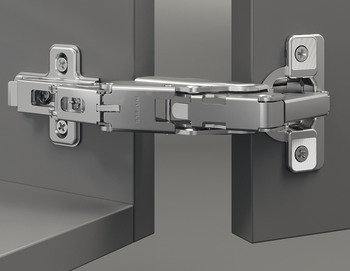

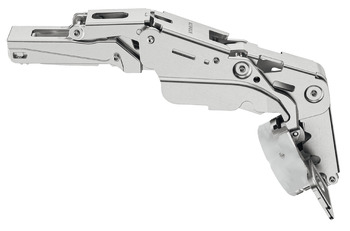

Concealed hingeMetalla 510 SM 155°, full overlay mounting - 329.14.209

HAFELE

Concealed hingeMetalla 510 SM 155°, full overlay mounting - 329.14.209 by Hafele — This hinge is designed for thin doors, ensuring a perfect closure. Made from durable steel and zinc alloy, it promises longevity and reliability.

Properties

Product Code: 329.14.209
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
329.14.209_Safety notes
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Concealed hingeMetalla 510 SM 155°, full overlay mounting - 329.14.209 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for thin doors starting from 10 mm, making it ideal for cabinets with internal pull-outs and extending trays. Its full overlay version ensures that doors close completely, providing an aesthetic finish.

Constructed from a zinc alloy cup and steel hinge arm, it boasts a nickel-plated finish that enhances durability and visual appeal. With an opening angle of 155°, it allows for a wide access area. The adjustment features are user-friendly, with side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment of 0/+2.8 mm.

The Concealed hingeMetalla 510 SM 155° stands out for its unique features and is a preferred choice for various furniture designs. Its functionality and aesthetic appeal make it an essential component in modern cabinetry.
