Furniture Hinges

Concealed hingeMetalla 510 SM 105°, half overlay mounting/twin mounting - 329.14.701

HAFELE

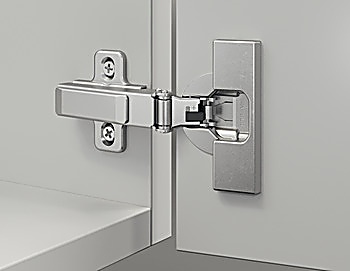

Concealed hingeMetalla 510 SM 105°, half overlay mounting/twin mounting - 329.14.701 by Hafele — This hinge is designed for standard applications, providing great ease in door mounting. Made from high-quality steel, it ensures durability and reliability.

Properties

Product Code: 329.14.701
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

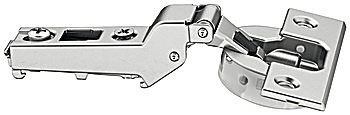

The Concealed hingeMetalla 510 SM 105°, half overlay mounting/twin mounting - 329.14.701 by Hafele represents a refined fusion of quality and functionality. This hinge offers flexibility with half overlay and twin mounting options, making it ideal for various door installations. Its steel construction ensures long-lasting performance while the nickel plating provides an elegant finish.

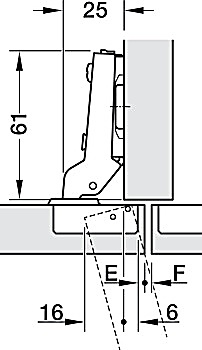

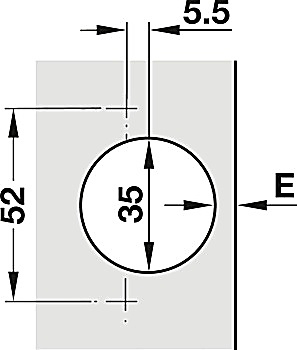

With an opening angle of 105°, it allows doors to open smoothly and comfortably. The 12 mm cup drilling depth facilitates easy installation, while the adjustment features make it user-friendly. Side adjustment of -1.5/+3 mm, height adjustment of ±2 mm, and depth adjustment of 0/+2.8 mm provide flexibility during installation.

The Concealed hingeMetalla 510 SM combines high-quality materials with functional design to meet user needs and deliver long-lasting performance. This product is favored for its excellent installation ease and aesthetic appeal.
